Maverick R Front Suspension and Bulkhead Reinforcement

Using limit straps on upper coil over Mount Yes No

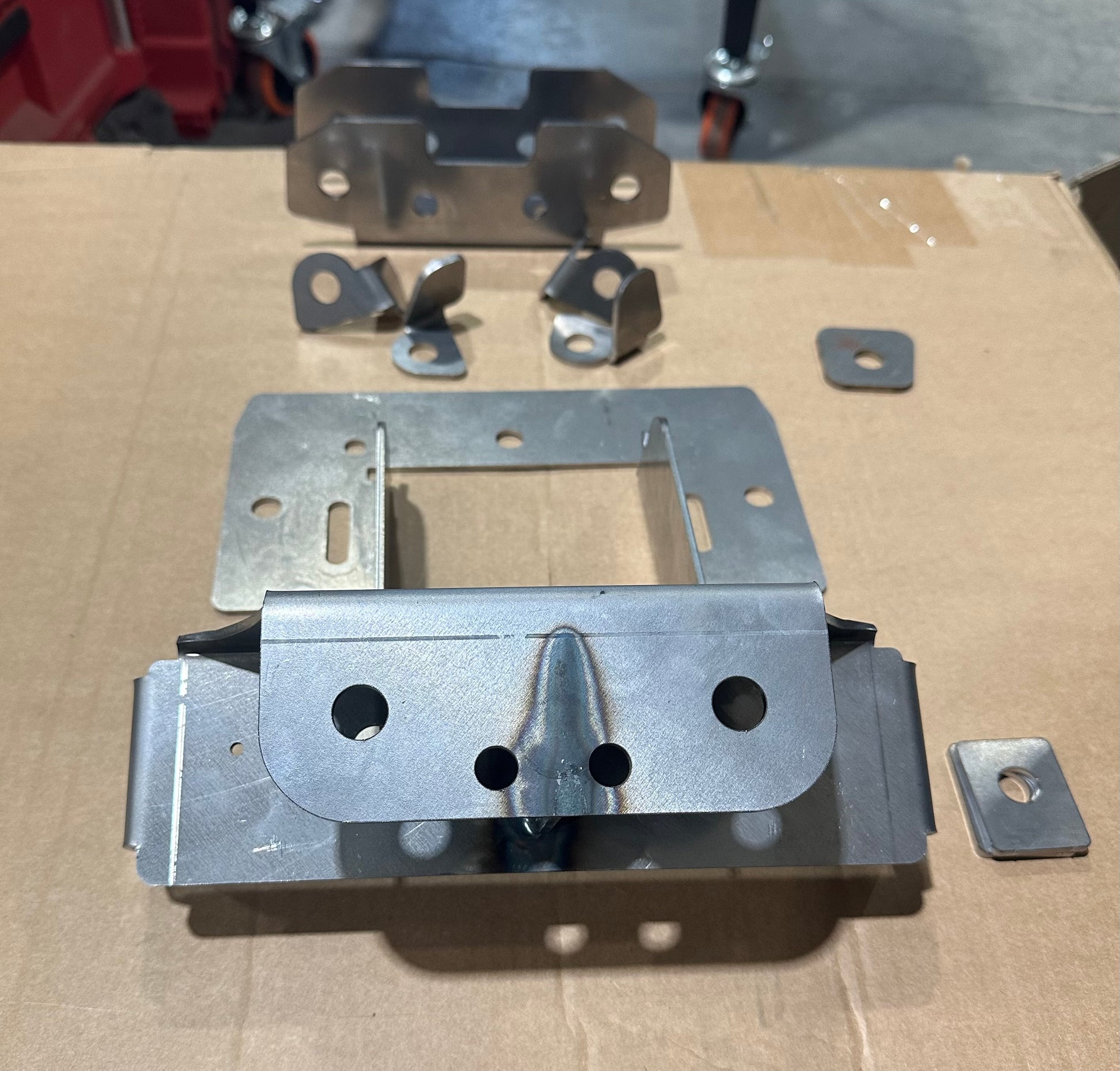

This complete kit is the solution for all of the problems with the factory suspension pivot holes. The factory holes are oversized and or slotted! This can lead to all kinds of issues, broken A-Arms, broken pivot bolts, instability, and reliability.

This reinforcement kit provides a permanent solution to all of the front suspension pivot holes. It is the perfect starting point for any build and will help keep you on the trail or in the Race!

Reinforcement areas:

Lower Control arm rear mount gussets

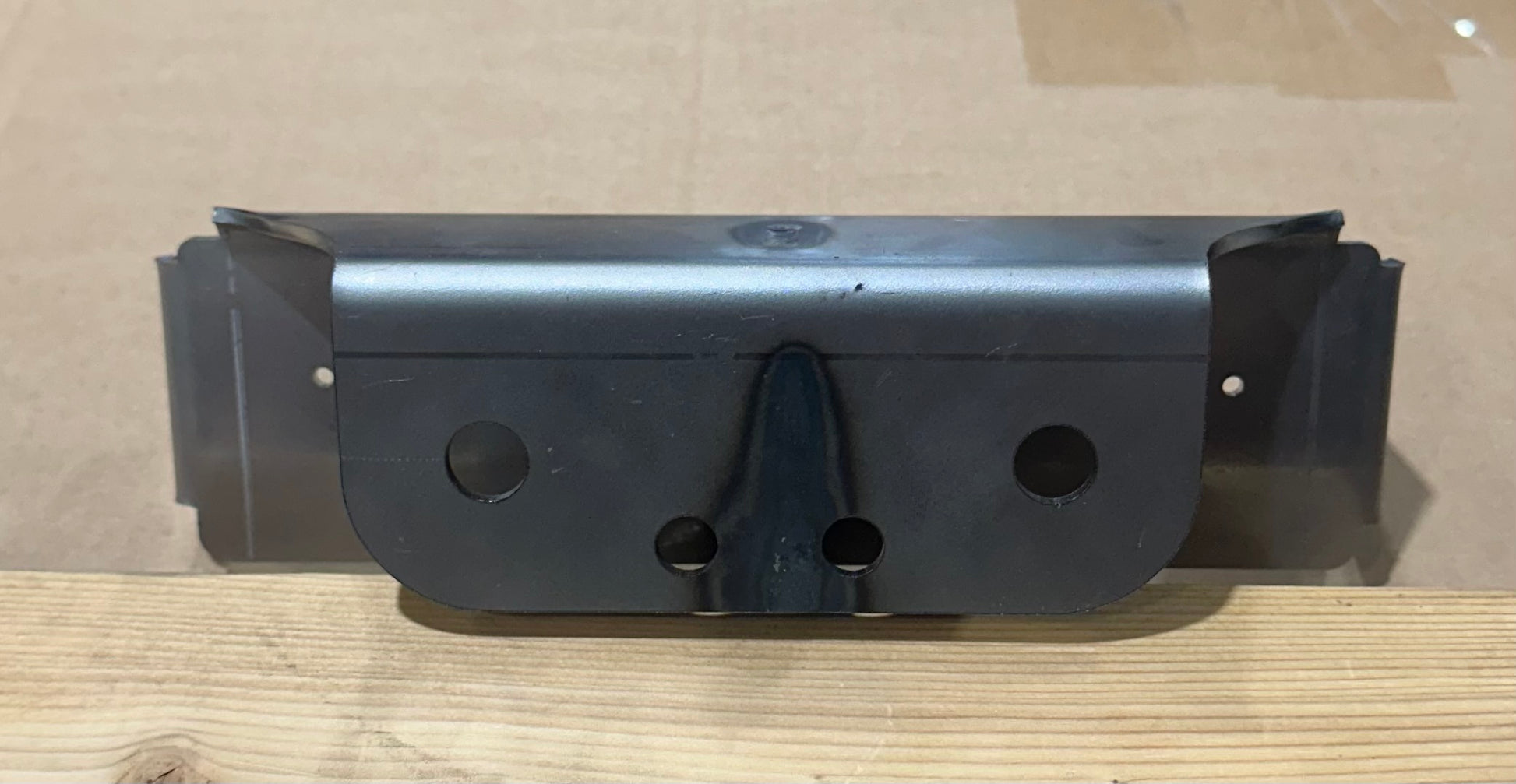

Lower Control arm front mount replacement Bracket

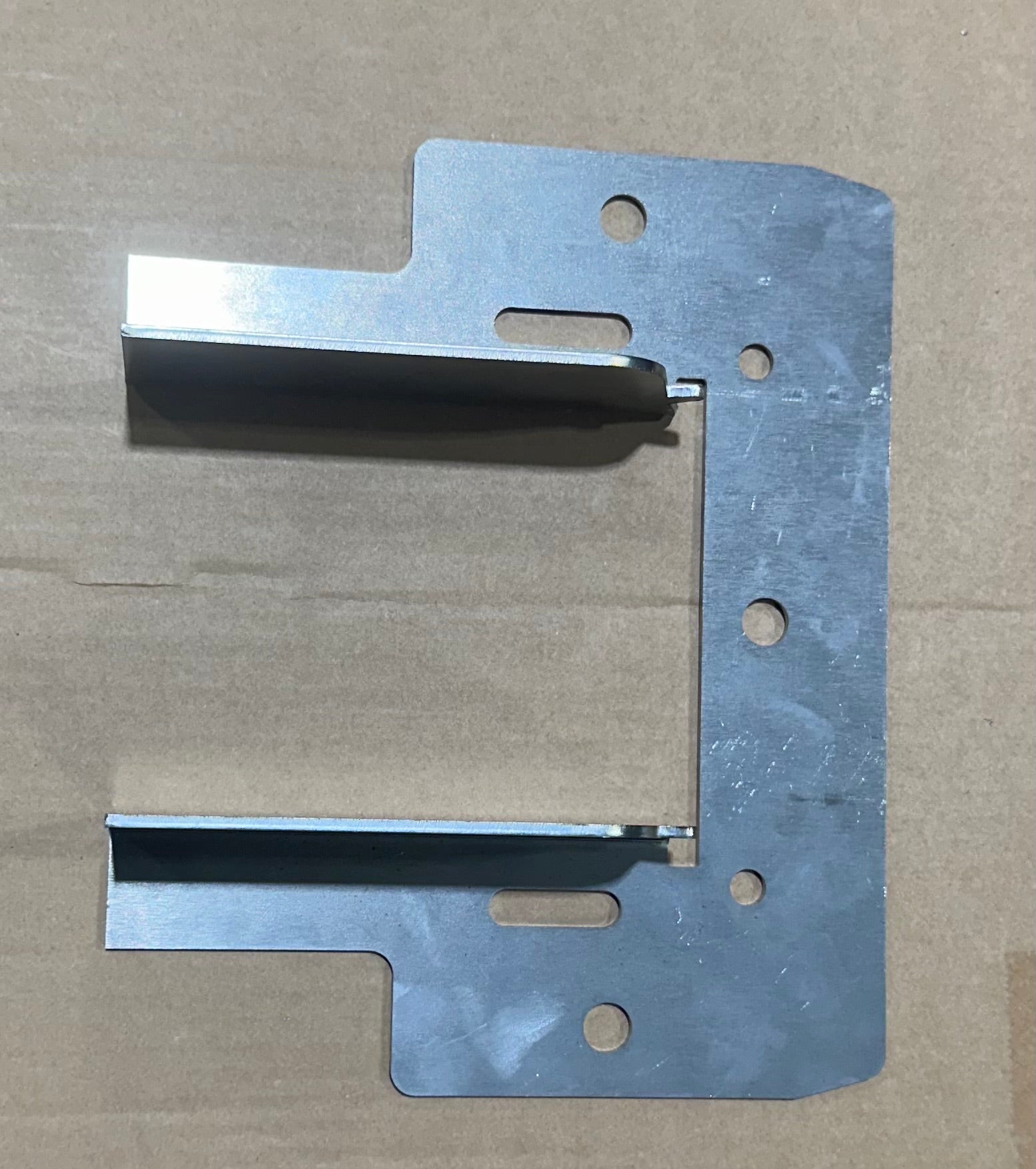

Front Bulkhead reinforcement

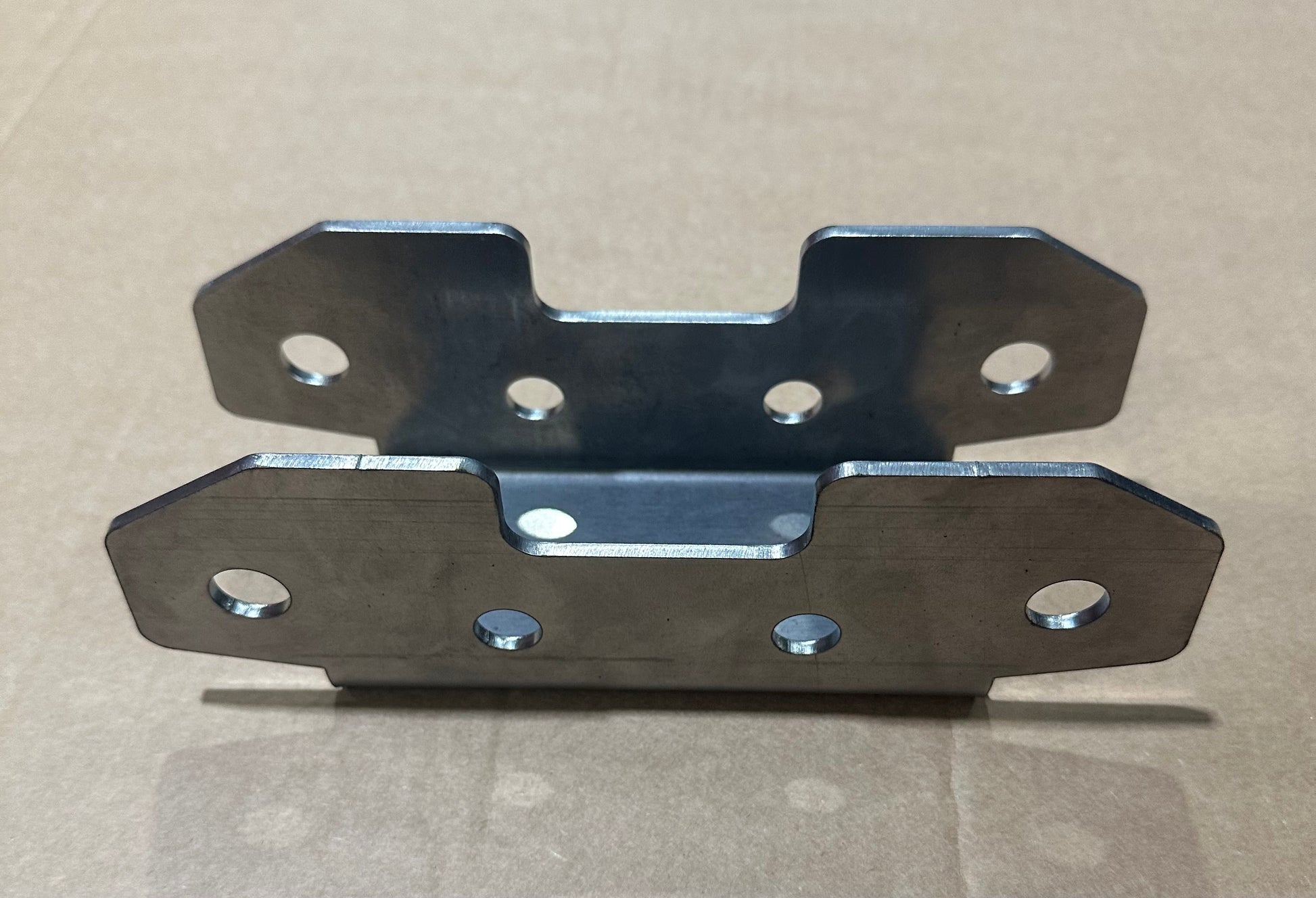

Upper Control arm Rear mount wrap around gusset

Upper Control arm Front Gussets

Coil Over upper Mounts Tabs

Kit includes upgraded pivot bolts and all hardware necessary to install:

Hardware Upgraded and Sized to fit Correctly:

Lower Control arm Hardware (Class 12.9)

Upper Control arm Hardware (Class 12.9)

Upper Coil over Hardware (Class 12.9)
